- Big Marlin, Beach cleaning machine for tractor

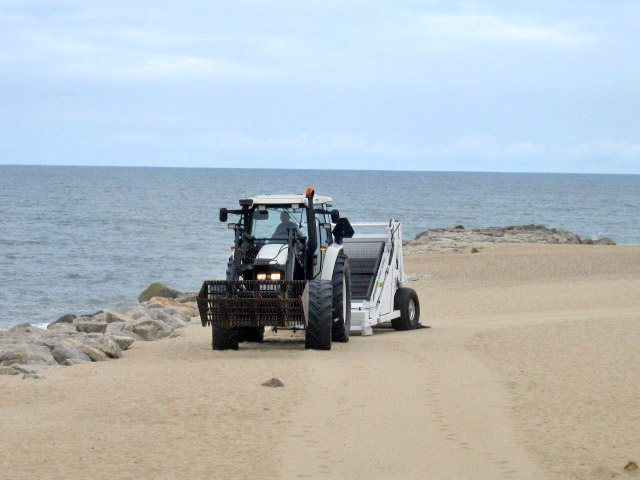

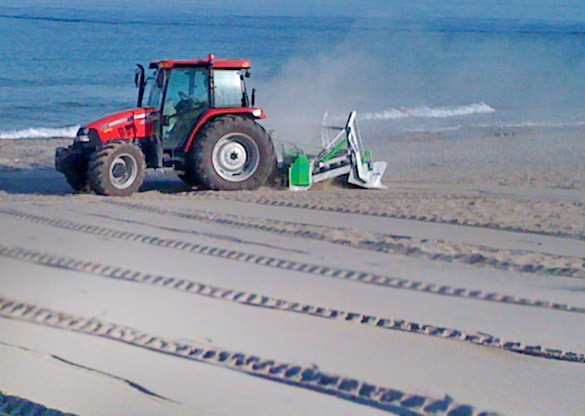

Beach cleaning machine for tractor Big Marlin
Tractor-towed beach cleaning machine, perfect to be used with 4-wheel drive tractors (80-90cv).
Ideal for cleaning of sandy areas (beaches, golf courses bunkers, playgrounds, beach volley fields, etc).

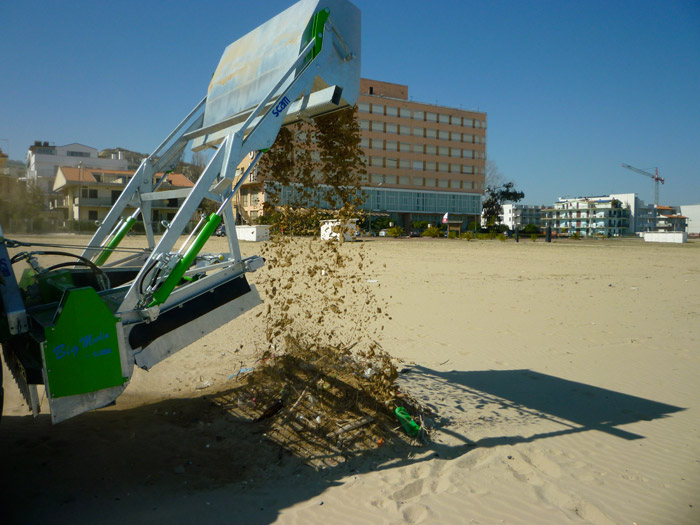

The vibrating screen system, the interchangeable sieves with various meshes shaped as a "step" and the high-frequency vibration allow the full sieving of the sand loaded by the blade, separating the waste which will fall into practical steel container emptied hydraulically.
The roller is equipped with springs which allow the fast disintegration of the sand, also if wet, and increase the speed of cleaning.
The depth of the work is controlled by the operator acting on the tractor's hydraulic lifter.
The machine is supplied with 2 strong sieves with different meshes.
The machine is equipped with a propeller shaft with controlled force for the connection with the tractor’s power takeoff.
The machine complies with ce regulations
VIBRATING SCREEN SYSTEM
The special “vibrating screen” installed by SCAM on all its beach cleaners, effectively separate sand from debris up to a depth of 10-12 and 15 cm respectively, even in case of damp or wet sand (water edge).
|CLEANING EFFICIENCY:||7000-15000 sq.m/h and more depending on the state of the sand (wet, humid, dry) and on the conditions of the foreshore.|
|CLEANING DEPTH :||from 0 to 20 cm. adjustable by the operator , also during its working.|
|CLEANING WIDTH :||190 cm|
|STANDARD EQUIPMENT:||2 interchangeable sieves , with 8-20 mm meshes1 propeller shaft|
|WASTE BOX:||500 lt.|
|DRAIN DEVICE:||Hydraulic device discharge up to two meters from the ground|
|DIMENSIONS:||cm 197x213x153 (H) Weight: kg.635|
|MACHINE COMPLETELYHOT DIP GALVANIZED||SUITABLE TO BE USED WITH 4-wheel drive tractorS (80/100HP), EQUIPPED WITH LIFTER AND hydraulic joints.|
