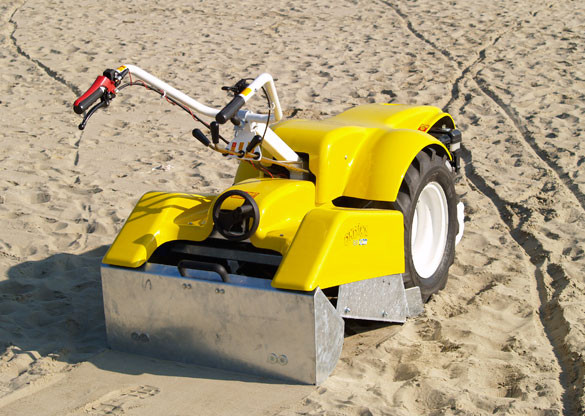

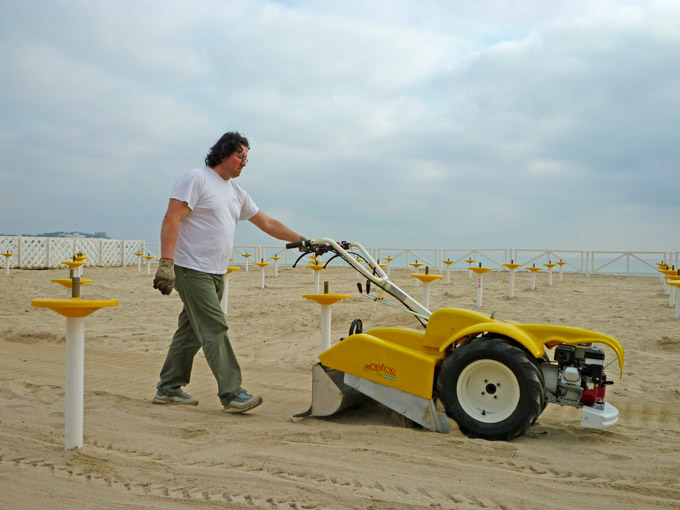

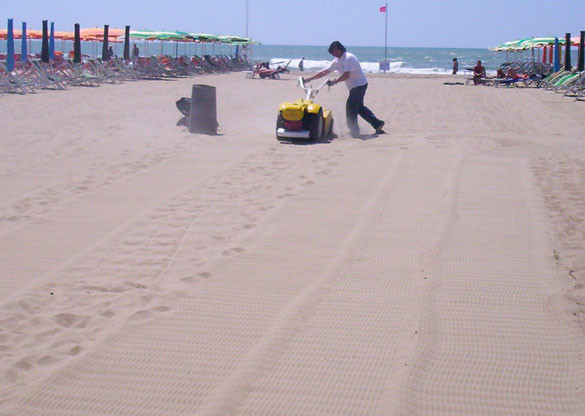

Beach cleaning machine riding units Ondina
Small size walk-behind beach cleaning machine ideal for cleaning of sandy areas (beaches, golf courses bunkers, playgrounds, beach volley fields, etc.).
The rear vibrating screen system, the interchangeable sieves with various meshes shaped as a "step" and the high-frequency vibration allow the full sieving of the sand loaded by the blade, separating the waste which will fall into practical steel container, extractable.
The depth of the work is controlled by the operator acting on the steering wheel of which the machine is equipped.
The machine is supplied with 2 strong sieves with different meshes.
The gearbox is equipped with 2 forward speeds + 2 reverse gears and differential.
The machine is equipped with a locking device of the differential, activated by a lever.
The machine complies with ce regulations.
VIBRATING SCREEN SYSTEM
The special “vibrating screen” installed by SCAM on all its beach cleaners, effectively separate sand from debris up to a depth of 10-12 and 15 cm respectively, even in case of damp or wet sand (water edge).
.
-
- Ondina 01
-
- Ondina 02
-
- Ondina 03
-
- Ondina 04
-
- Ondina 05
-
- Ondina 06
-
- Ondina 07
| CLEANING EFFICIENCY: | 1250-2800 sq.m/h and more depending on the state of the sand (wet, humid, dry) and on the conditions of the foreshore. |
| CLEANING DEPTH : | From 0 to 10 cm. adjustable by the operator , also during its working. |
| CLEANING WIDTH : | 75 cm |
| STANDARD EQUIPMENT: | 2 interchangeable sieves , with 4, 5-8 mm meshes |
| WASTE BOX: | 25 lt. extractable for easy emptying |
| ENGINE: | Honda GX160 3.6 kW (4.8 HP) |
| VELOCITY: | 2 Forward + 2 reverse gear |
| HIGH FLOTATION RUBBER TIRES | Which provide excellent traction in sand but NOT harm grass or paved surfaces |
| DIMENSIONS: | cm 198/168*x76x96/80* (H) Weight: kg.195 (*) with handlebar folded down/closed. |
| MACHINE COMPLETELY HOT DIP GALVANIZED | |
